Mitech MEW Micro Control Series Hydraulic Universal Testing machine Mechanical Limit Protection Tensile Strength

Brand Name : Mitech

Model Number : WEW-100 series

Certification : ISO9001..

Place of Origin : Beijing,China

MOQ : 1 set

Payment Terms : T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 SETS PER MONTH

Delivery Time : 10-15 days after paid

Packaging Details : Carton box

Structural framework : Gate type

Maximum testing force (KN)ing range : 100

Indicateted error : Better than ±1%of the indicated value

Deformation precision : ±1％

Clamping type : Manual clamping

Circle sample holder diameter : Φ6-26mm

Size of upper and lower plate : Φ160

Stretch space : 550mm

Contact Now

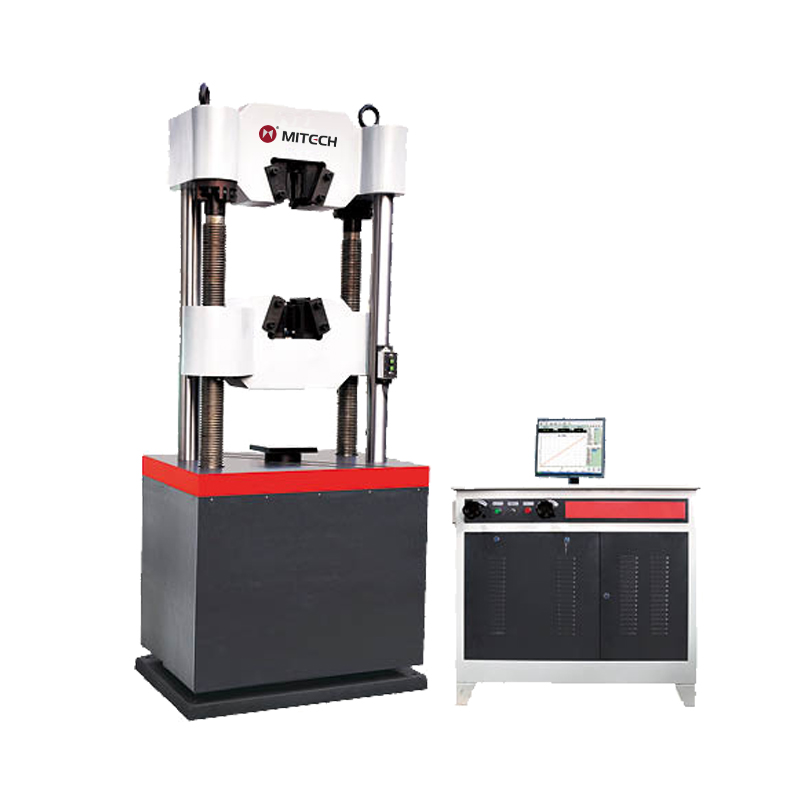

Mitech MEW Micro Control Series Hydraulic Universal Testing Machine

Overview

Mitech MEW Micro Control Series Hydraulic Universal Testing Machine through controling high pressure oil pump to drive screw motion, equipped with corresponding auxiliary equipment for metal, nonmetal and composite materials tensile, compression, bending, shear, peel, tear and other mechanical properties test, its clearance seal oil cylinder with high precision, computer display technology, digital processing, high precision data acquisition control technology, its performance is stable, powerful functions, the data processing accurate, is solid in construction, simple structure, high reliability, simple operation, friendly interface. Widely used in metal and non-metallic processing and manufacturing, quality inspection department quality inspection, institutions of higher learning, scientific research test, and other fields, it is to improve the production efficiency, save production costs necessary professional precision testing instrument.

Technical Parameters

Technical parameters MEW
MEW-100 MEW-300 MEW-600 MEW-1000
Structural framework Gate type
Maximum testing force (KN) 100 300 600 1000
Indicateted error Better than ±1%of the indicated value
Force measuring range 4％-100％of Maximum testing force
Deformation precision ±1％
Clamping type Manual clamping Manual /Automatic clamping
Circle sample holder diameter Φ6-26mm Φ10-32mm Φ13-40mm Φ26-60mm
Flat specimen clamping thickness 0-15mm 0-15mm 0-30mm 0-40mm
Diameter of the shear sample 10
Size of upper and lower plate Φ160
Stretch space 550mm 650mm
Compression space ≥500mm
Protect Function Overload protection, limit protection
Power supply 380V(Three phase four wire system )
Clamp form Suitable clamps will be configured according to the customer requirements. Special clamps can be customized for the customer.
Demensions(mm) 940*680*2000 1000*640*2400 1130*1230*2700
Total weight 1200kg 1200kg 2000kg 3000kg

Features

  • Widely used in metallic and non-metallic processing industry, quality testing in quality inspection departments , scientific research in higher education institutions and other fields;
  • Integrated oil source design makes the whole structure more compact and reasonable, reducing the area;
  • Having functions of displaying test force, testing force peak, testing force rate and others;
  • Using 5000-line optoelectronic encoder, with relative high accuracy of displacement;
  • Using high precision and high stability sensor, with high precision measurement and amplification system to ensure that the test force of high precision;

Scope of application

Widely used in pull, pressure, bending and other mechanical properties test of metal, non-metallic and composite materials;

Applications

  • Quality control link of Metal processing manufacturing
  • Quality control link of nonmetal manufacturing industry
  • Teaching experiment of scientific research in Institutions of higher learning
  • Material analysis test of scientific research institutions
  • Quality inspection link of Quality inspection departmentMitech MEW Micro Control Series Hydraulic Universal Testing machine Mechanical Limit Protection Tensile Strength
