Mitech MT-1C Portable Magnetic Particle Flaw Detector with competitive price , high accuracy , low consumption
Product Overview
MT-1C magnetic particle flaw detector adopts high-capacity lithium battery pack, can convert DC to AC through variable-frequency, provide magnetic powder flaw detector with magnetic power supply. With low power consumption, it can continuous work for more than four hours after charging. It isespecially proper for working in the wild and aerial area.
Working Principle

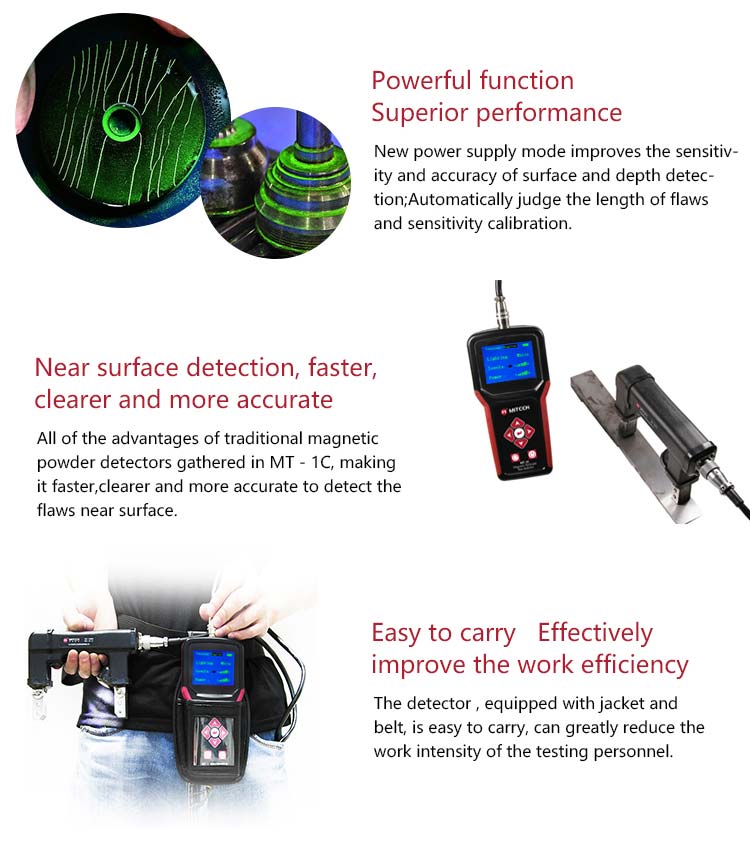

Put the workpiece into high-intensity magnetic field, connect electric to make it magnetized, if there are flaws (crack,slag) in or near the surface, there will be a leakage around the flaws. Put good quality magnetic powder(usually the magnetic iron oxide powder)on the object, magnetic powder will gather together near the leaked magnetic field, piled up to form visible traces of magnetic powder. In the proper light, we can see the marks and judge the position, size, shape and degree of the flaws.
Working Conditions
Operatiom temperature: －10℃～＋40℃
Storage temperature: -20℃～＋70℃
Relative Humidity: ≤80％
The environment should avoid strong vibration, magnetic interference, corrosive medium and heavy dust.
Instrument Features

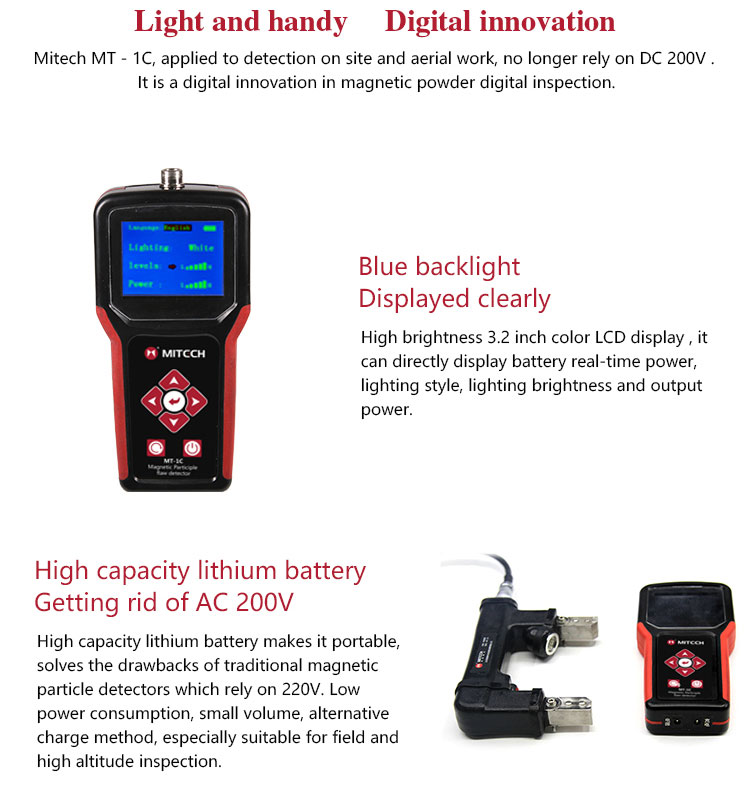

Portable high-capacity lithium battery pack without limitation of 220V power supply. With low power consumption and small volume, charging either online or offline. It is especially proper for working in the wild and aerial area.
Adjustable illumination brightness and working power can meet different testing demand and save the setting.
New power supply can enhance the testing depth and sensitivity.
Pulse power supply can continuous work without chill time.
Combine all traditional advantages in one unit can detect surface flaws fast, clearly and accurately.
Adjustable brightness, power and range can meet different demand.
Small size with equipped bag can improve working efficiency.
